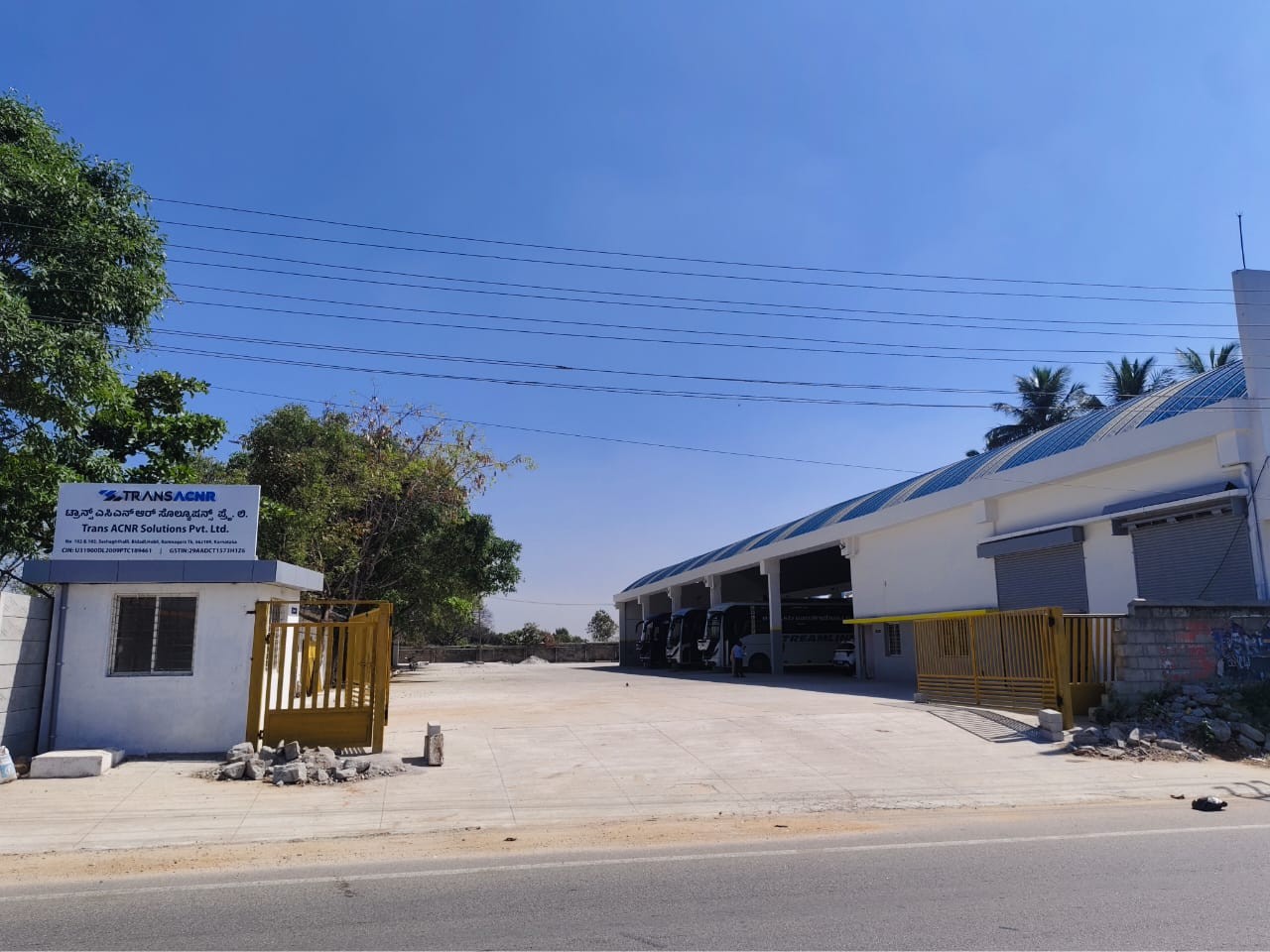

JTAC Bus AC Service Centre in Bidadi Bengaluru

A Practical Pre-Trip Bus AC Inspection Checklist for Fleet Operators

A step-by-step guide for daily checks

Picture this: it is a sweltering summer afternoon, the bus is fully loaded with passengers, and the air conditioning fails 30 kilometres into the route. The windows will not open, tempers flare, and the operator’s reputation takes a hit. Worse, a neglected AC system can lead to compressor failure, substantial repair expenditure, and a bus out of service for days.


The good news? Most catastrophic AC failures begin with small, detectable issues. A daily pre-trip inspection that takes just 10 to 15 minutes can identify these problems before they escalate. This checklist breaks that inspection down into four logical zones, ensuring no component is overlooked. Distribute it to your drivers and technicians, laminate it, or load it onto a tablet – make it a non-negotiable part of every morning routine.

Why a Daily Bus AC Check Matters (Beyond Passenger Comfort)

Safety: A fogged windshield resulting from a malfunctioning defrost/AC cycle is a serious operational hazard.

Cost Control: Identifying a frayed belt, a low refrigerant sight glass reading, or a clogged condenser early prevents compressor seizure and expensive downstream repairs.

Fuel Efficiency: A strained AC system places additional load on the engine, increasing fuel consumption. A well-maintained system operates efficiently.

Compliance and Reputation: In many regions, passenger transport regulations require functional climate control. Comfortable passengers are repeat customers.

The Pre-Trip Bus AC Inspection: A 4-Zone Checklist

Perform this walk-around with the engine off for all visual and tactile checks, then start the engine and engage the AC for the functional tests.

Zone 1: Exterior Walk-Around (Engine Bay and Condenser)

1. Drive Belt Condition and Tension

Look: With the engine off, visually inspect the AC compressor drive belt. Cracks, glazing, frayed edges, or missing ribs indicate that the belt must be replaced – not merely re-tensioned.

Feel: Press the belt midway between pulleys. If deflection exceeds 12 mm to 19 mm (½ to ¾ inch) – always consult your OEM specification for the precise figure – or if the belt feels loose, the automatic tensioner or manual adjustment requires attention. A slipping belt will not drive the compressor correctly and may cause premature failure.

2. Compressor and Clutch

Look: Check the compressor body for oil seepage, greenish refrigerant dye, or black “death dust” around the clutch – each is an indicator of a failing seal or impending clutch breakdown.


Listen (engine running, AC off): The clutch should be silent and stationary. Rumbling or grinding when the clutch is disengaged points to a failing bearing.


Engage AC: A distinct “click” should be audible as the clutch engages. If the clutch cycles on and off rapidly every few seconds, a low refrigerant charge is the most likely cause.

3. Condenser Coil and Fan

Look: The condenser – often mounted at the front, rear, or roof of the vehicle – should have clean, straight fins. Remove insects, leaves, and debris with a soft brush or low-pressure air. Bent fins restrict airflow and elevate head pressures, accelerating compressor wear.


Verify: Where an electric condenser fan is fitted, start the bus, set the AC to maximum, and confirm that the fan runs smoothly without wobbling or unusual noise. A failed fan can go undetected during cooler morning hours and cause system overheating by midday.

4. Hoses, Lines, and Fittings

Look: Trace refrigerant hoses from the compressor to the condenser and back. Bulges, soft spots, cracks, or shiny areas where a hose has made contact with a metal surface are warning signs. An oily or wet fitting suggests a slow refrigerant leak – refrigerant carries oil as it circulates through the system.


Touch: With the system operating, larger-diameter suction lines should feel cool; smaller liquid lines will be warm. A temperature anomaly along the line can help locate blockages or valve-related issues.

Zone 2: Interior Cabin Check (Passenger Compartment)

5. Evaporator and Blower Access

Where: Depending on the bus configuration, the interior evaporator unit may be located behind the driver’s seat, in a side cabinet, or at the rear of the vehicle. Open its access panel.


Look: The evaporator coil should be free of dirt, mould, and debris. A clogged coil will freeze over, blocking airflow entirely. Clean it regularly using an appropriate foaming coil cleaner – a surface wipe is not sufficient for thorough cleaning.


Check the blower motor impeller wheel for debris. With the power off, spin it by hand to detect rough bearings.

6. Cabin Air Filters

Where a fresh-air intake filter or recirculation filter is fitted, inspect it as part of the daily check. A filter matted with dust and fibres dramatically reduces airflow. A gentle tap to dislodge loose surface dirt is adequate for the daily inspection; however, establish a scheduled replacement cycle – typically every 30 to 60 days in high-utilisation fleets. Always consult the manufacturer’s specification for your specific system to confirm the correct service interval.

7. Air Distribution and Vents

With the blower running at all available speeds, move through the passenger cabin and assess each vent. All vents should deliver strong, steady airflow. Weak airflow from isolated vents may indicate collapsed ducting or a disconnected hose behind a panel. Listen for whistling sounds, which typically signal a loose connection.

Zone 3: Under-Chassis and Drain Lines

8. Evaporator Drain Tubes

Locate the rubber drain elbows beneath the vehicle leading from the interior AC unit. Squeeze them gently to clear any blockage caused by sludge or algae accumulation.

When the AC is operating, a slow, steady drip of clear condensate water should be visible beneath the bus. No drip indicates a blocked drain which – if left unresolved – will cause water to accumulate and potentially contact electrical components or enter the passenger area. A blocked drain also contributes to evaporator coil icing.

9. Roof-Mounted Unit Cover (where applicable)

For vehicles equipped with rooftop AC bus air-conditioning units, conduct a visual scan of the fibre-glass cover from ground level, checking for cracks, loose latches, or missing fasteners. A compromised cover can allow the ingress of water and road debris, accelerating corrosion of internal components. Confirm that all mounting fasteners are secure and that rubber sealing gaskets are intact and correctly seated.

Zone 4: Control Panel and Performance Test (Engine Running)

Bring the bus to normal idle speed – or high idle where this function is available – close all doors and windows, and set the AC to maximum cooling on the highest blower setting.

10. Control Panel Lights and Functions

All backlighting and LED indicators should be fully operational. A flashing “AC” warning light frequently indicates a stored diagnostic trouble code; it must not be ignored. Cycle through all fan speed settings – each increment should produce a noticeable and proportionate change in airflow. A non-functioning speed setting typically indicates a failed blower resistor or control module.

11. Temperature and Pressure Quick Check

Place a probe thermometer into the centre dashboard vent or the coldest ceiling vent available. After 3 to 5 minutes of sustained operation, discharge air temperature should be at least 11°C to 14°C (approximately 20°F to 25°F) below the ambient cabin temperature. As a general operational reference, on a 29°C (85°F) ambient day, initial discharge air is typically in the range of 13°C to 16°C (55°F to 60°F), with the system stabilising toward approximately 4°C to 7°C (40°F to 45°F) under continued operation. Always verify these benchmarks against your specific system’s manufacturer specification, as performance targets vary by unit design and vehicle configuration.


Where a refrigerant pressure gauge or driver information display is fitted, confirm that pressures fall within the manufacturer’s specified operating range. Elevated high-side pressure at idle may indicate a blocked condenser or refrigerant overcharge; abnormally low pressure is indicative of a significant refrigerant leak.

12. Listen to the System

Switch the AC on, then off, then on again. Listen for slugging sounds, hammering, or a loud hiss that persists after shutdown. A brief, quiet hiss during pressure equalisation upon shutdown is normal; a continuous loud hiss indicates an active refrigerant leak. The system should operate smoothly and without intrusive noise throughout.

Common Red Flags That Require Immediate Attention

If any of the following conditions are identified, the vehicle must be withdrawn from service for immediate AC diagnosis – without exception:

The compressor clutch is emitting smoke or heat, or is failing to disengage when the AC is switched off.

A visible refrigerant oil leak – identifiable by a wet, oily, or discoloured patch – is present at any hose or fitting.

The drive belt is missing ribs or riding off the pulley.

The high-pressure relief valve (located near the compressor) has actuated and released refrigerant, indicating a condition of severe system overpressure.

An odour of burning electrical insulation is present within the cabin when the blower is running – this may indicate a blower motor resistor at risk of thermal failure.

Guidance for Fleet Managers

Convert This Checklist to a Digital Form: Implement a digital version that allows drivers and technicians to mark each inspection item, attach photographs of damaged components, and submit records in real time. Aggregated data enables trending of AC system health across the entire fleet over time, supporting proactive maintenance decisions.

Seasonal Preventive Maintenance: While this guide addresses daily pre-trip checks, a comprehensive AC preventive maintenance service should be scheduled annually – ideally prior to the onset of the high-ambient season. This service should include refrigerant recovery and recharge verification, thermostat calibration, full condenser fin combing, and replacement of receiver-driers in accordance with the manufacturer’s recommended service intervals.

Driver Awareness Training: A short, practical session of approximately 15 minutes focused on helping drivers recognise an audible slipping belt, reduced vent airflow, or an unfamiliar odour can significantly improve early fault detection. Drivers who are informed and observant serve as an effective first line of maintenance defence.

Stock Critical Spare Parts: Components with the highest failure rates in bus AC systems typically include idler pulleys, tensioners, drive belts, cabin air filters, and blower resistors. Maintaining an adequate on-site stock of these items reduces the risk of a minor fault escalating into a multi-day vehicle grounding.

Conclusion: Reliability Begins With Routine

A reliable air conditioning system is not a luxury – it is a fundamental component of operational excellence in passenger transport. Embedding a structured daily pre-trip AC inspection into every shift reduces reactive maintenance, extends component service life, and supports compliance with applicable passenger transport regulations.

Distribute this checklist to every driver and technician in your operation. Laminate it, post it in each vehicle, or integrate it into your fleet management platform. A consistent, disciplined approach to pre-trip inspection is among the most cost-effective investments a fleet operator can make.

Quick Reference Card - Post in Every Vehicle

Zone

Check Item

Status (OK / Note)

1

Compressor drive belt (condition and tension)



1

Compressor clutch (noise, engagement cycle)



1

Condenser (clean fins, fan operational)



1

Hoses and fittings (no oil, no abrasion marks, no bulges)



2

Evaporator coil and blower (clean, impeller bearing smooth)



2

Cabin filter (clear, dry, not matted)



2

All vents (strong, even airflow at all speeds)



3

Drain tubes (clear, condensate water dripping)



3

Roof unit cover (secure, no cracks, fasteners tight)



4

Control panel and all fan speed settings operational



4

Vent temperature drop (minimum 11°C / 20°F below ambient – verify against manufacturer specification)



4

No unusual noises or odours



Decision

Bus cleared for service?

YES / NO
